Used Equipment For Sale

TRENCHER,36"X4",GAS,WALK

Key: 9102#J702
Manufacturer: DITCH WITCH
Model: C24XA
Year: 2017
Hours: 275
Sale Price: $11,000.00
Retail Price: ~~$26,269.00~~
Comments:

DIMENSIONS:
Headshaft height 13.7 in
Length (up to) 94 in
Width, transport 35.8 in
Height, transport (up to) 63 in
Centerline trench to outside edge machine
Left 17.2 in
Right 18.6 in
POWER:
Engine Honda GX690
Fuel Gasoline
Cooling medium Air
Number of cylinders 2
Manufacturers net horsepower
rating*
22 hp
Rated speed 3,600 rpm
Fuel consumption @ rated power 1.77 gph
POWER TRAIN:
Ground drive
Hydraulic, Infinite variable from zero
to maximum, speed and direction
control
Digging chain drive
Hydraulic direct drive, one speed forward and reverse
Pump drive Direct drive from engine
Track width 8 in
Trencher drive
Hydraulic Direct drive
Digging chain 19K, 33K and 35K
Ground pressure 4.5 psi
Transit forward 176 fpm 53.6 m/min
Transit reverse 136 fpm 41.5 m/min
Digging chain speed @ 3,600 rpm
19K 366 fpm 11 m/min
33/35K 309 fpm 94.2 m/min
Spoil handling
Auger type Single, open end
Auger diameter 17 in
Trench cleaner type Mechanical
Trench cleaner size 4-6 in
Operating weight (up to) 1,915 lb
HYDRAULIC SYSTEM @ 3,600 RPM
Digging drive pump capacity 10 gpm 37.85 l/min
Filtration 10 micron absolute
FLUID CAPACITIES:
Fuel tank 6.2 gal
Engine oil 1.8 qt
Hydraulic system 11 gal
TRENCH SIZE, MAX
Depth 36 in
Width 6 in
NOISE LEVEL:
Ear sound pressure 91 dBA per ISO 6394
Overall sound pressure 100 dBA per ISO 6393
VIBRATION LEVEL:
Operator's hand Less than 2.5 m/s

Where to find TRENCHER,36 X4 ,GAS,WALK in Marquette

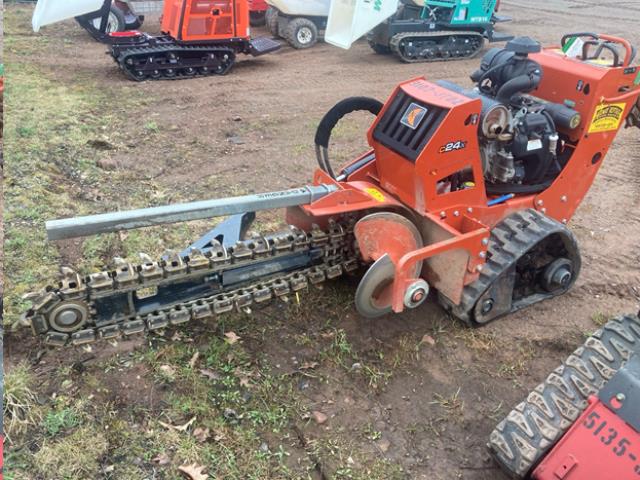

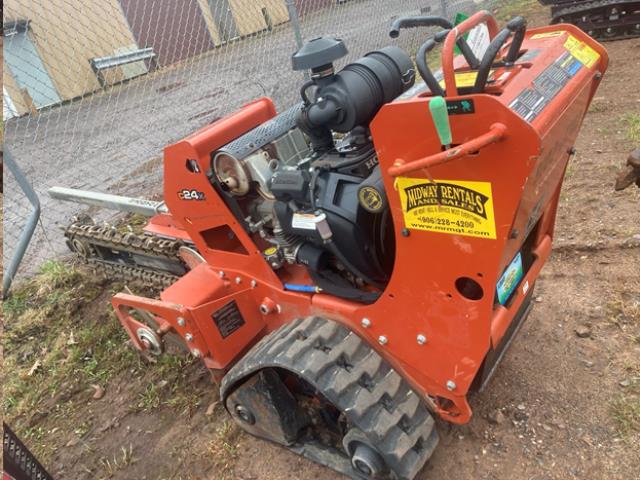

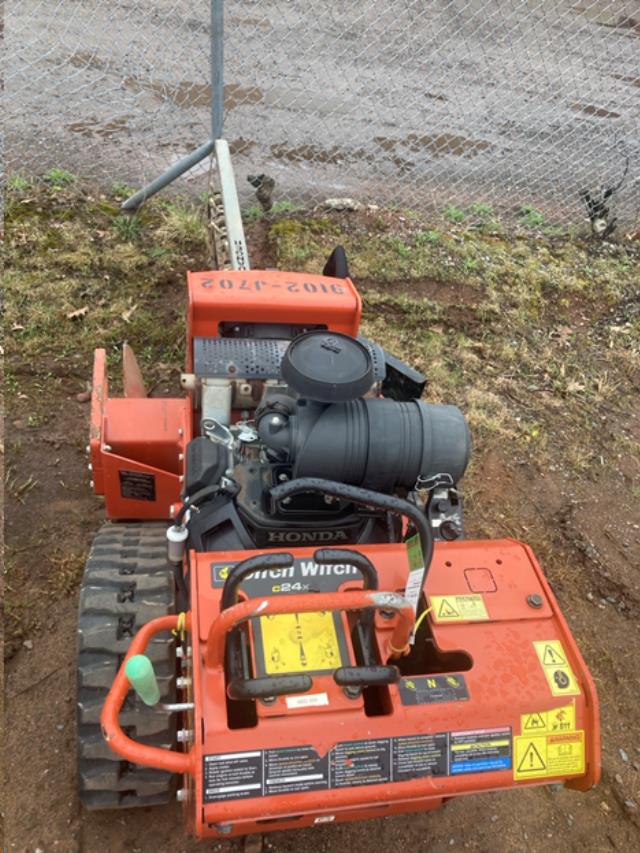

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

* Prices are subject to change.
