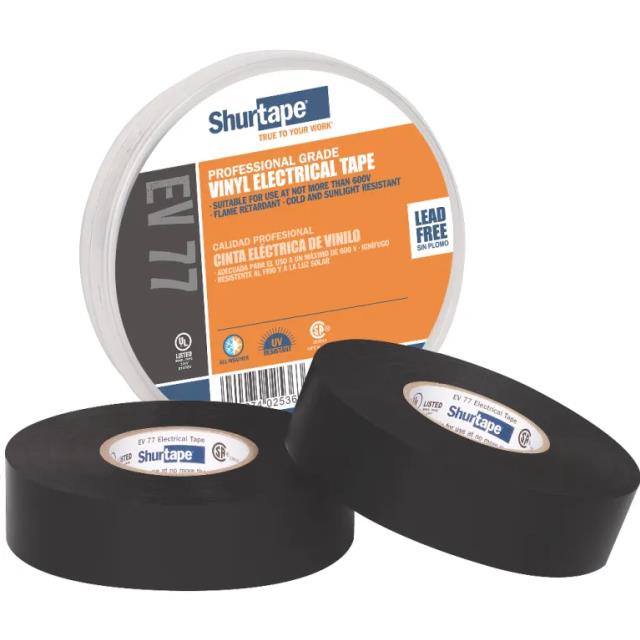

TAPE,ELECTRICAL, 3/4"X66', BLACK, PROF.


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: SHURTAPE TECHNOL

Model: EV 077B

Sale Price: $4.91

Quantity:

Info

EV 77 BLK Professional Grade, UL Listed, Black Electrical Tape
Professional grade, 7.0 mil, all-weather vinyl insulating tape used for electrical and mechanical protection in temperatures ranging from 0 F to 220 F. UL Listed and CSA Approved, EV 77B black electrical tape is lead free, flame retardant, and is engineered with a polymeric backing construction, as well as a specialized method of bonding the adhesive to the vinyl backing, which allows the tape to be highly conformable and deliver a moisture-tight seal, even in extreme temperatures.
Features & Benefits
7.0 mil, professional grade electrical tape
High tensile strength
High performance in a wide temperature range
Resistant to UV, oils, acids, alkalies, corrosive chemicals and water
Also available in a variety colors
Typical Applications
For primary insulation of electrical splices up to 600 V
Also used as a jacketing on high voltage splices and repairs

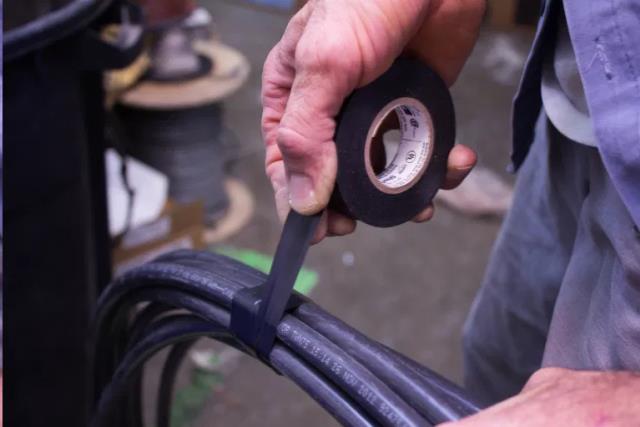

Can be used when wrapping wire harnesses and cables
For indoor and outdoor use
Construction Specifications
Backing: Polymeric polyvinylchloride (PVC)
Adhesive: Non-corrosive, rubber-based
Liner: NA
Properties & Technical Data
Adhesion to Stainless Steel: 28 oz/in width (3.06 N/10 mm)
Dielectric Breakdown: 10,000 V
Dielectric Strength: 1,429 V/mil
Elongation: 300%
Service Temperature Range: 0 F to 220 F (-18 C to 105 C)
Tensile: 20 lbs/in width (35.0 N/10 mm)
Thickness: 7.0 mils (0.18 mm)
