Sponge Rubber Expansion Joint 1/4"x36"x10'


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: WR MEADOWS

Model: 2101360100

Sale Price: $123.00

Quantity:

Info

DESCRIPTION
SPONGE RUBBER EXPANSION JOINT is
produced to a uniform thickness and density from
gray-colored, top-quality, blown sponge rubber. It is
easily compressed and has a recovery of 95% or
more of the original thickness and a density of not
less than 30 lb./ft.3 (480.56 kg/m3).
USES
SPONGE RUBBER EXPANSION JOINT is
frequently used on bridge structures and sewage
treatment plants that undergo rapid changes in
temperature. Because of its excellent recovery
capability during wide temperature variations,
SPONGE RUBBER EXPANSION JOINT is used
around supporting pillars, drains, hydrants, and lamp
and sign posts, as well as in isolation applications or
between materials having dissimilar coefficients of
expansion.
FEATURES/BENEFITS
High resiliency with excellent recovery after
compression.
Protects against water infiltration when properly
sealed.
Easy to handle and install.
Offers isolation capabilities.
PACKAGING
Thickness Width (6.35 mm)
Slab Width 36 (914.4mm)
Length 10 (3.05 m)
SPECIFICATIONS/STANDARDS
AASHTO M 153, Type 1
ASTM D1752, Type 1
Corps of Engineers CRD-C 509, Type I
FAA Specification Item P-610-2.7
Federal Specification HH-F-341 F, Type II, Class A
New York State DOT
APPLICATION
The type of control joint and spacing used will vary with each project
according to the type of structure, climatic conditions, and anticipated
stresses in the concrete. Thinner joints of 1/4 (6.35 mm), 3/8 (9.53
mm), or 1/2 (12.7 mm), spaced at frequent intervals, offer greater
control than thicker joints spaced at greater intervals. The basic
objective is to provide ample room for the concrete to expand or

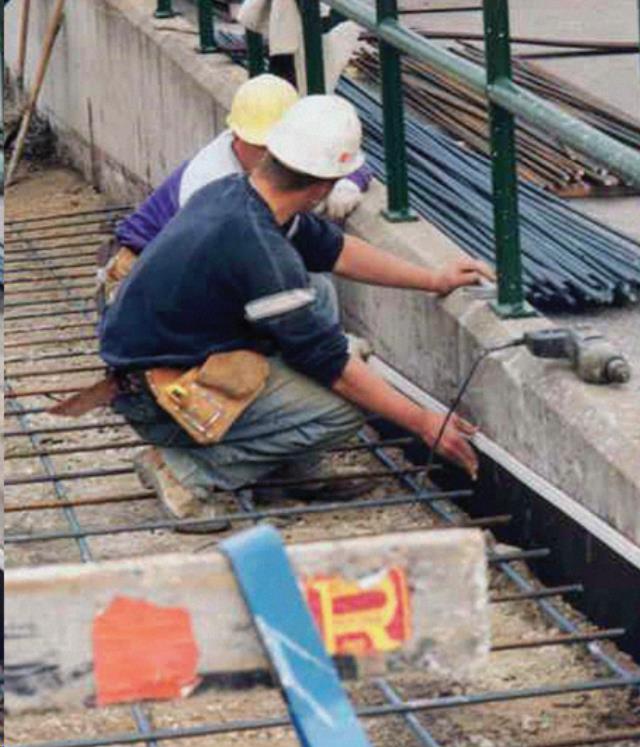

contract without creating damaging stresses. Expansion joints
should be positioned against forms at interrupting objects or columns
and against abutting structures prior to the placement of the
concrete. SPONGE RUBBER EXPANSION JOINT should be
recessed 1/2 (12.7 mm) below the concrete surface to accept the
joint sealant. To isolate filler from sealant, use SNAP-CAP from W.
R. MEADOWS.
DECK-O-SEAL , POURTHANE NS, POURTHANE SL, and SOF SEAL are suitable sealants for horizontal applications of SPONGE
RUBBER EXPANSION JOINT. The recommended sealants for
vertical applications are DECK-O-SEAL GUN GRADE and
POURTHANE NS.
For most current data sheet, LEED information, and SDS, visit
www.wrmeadows.com.
