LASER/OPTICAL TOOLS & ACCESSORIES

LASER, POINT, 5-PT, LA-5P GREEN


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: STABILA

Model: LA-5P G

Sale Price: $400.00

Quantity:

Info

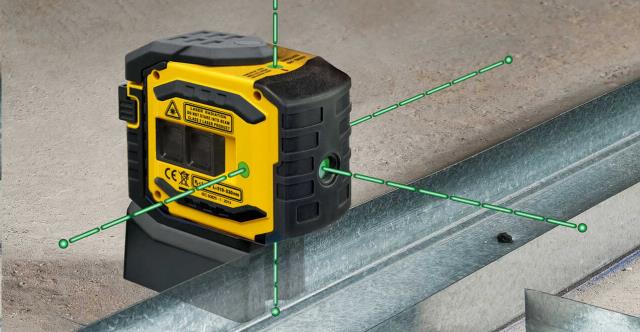

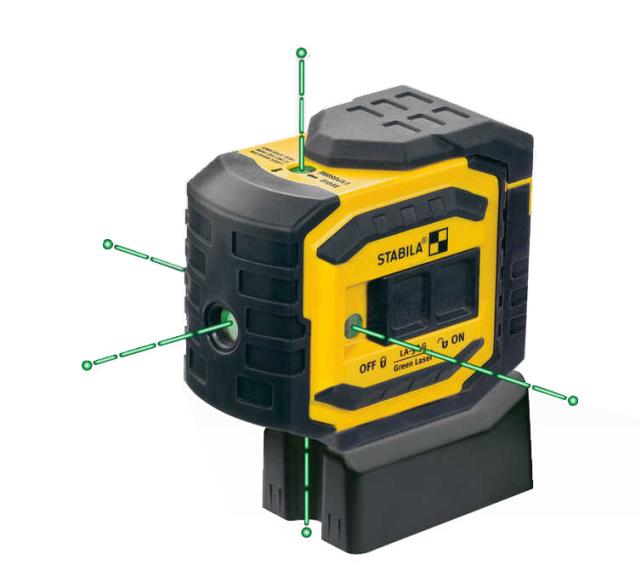

LA-5P G self-leveling, 5-Point/Dot GREENBEAM Laser
The self-leveling, STABILA LA-5P G, projects 5-bright GREENBEAM laser dots, visible up to 60 ft. Layout points can be transferred and right angles can be set in an instant. It features a mechanical on/off switch and pendulum lock. This durable and compact pouch laser is excellent for framing walls, interior and exterior. Builders will appreciate the ability to work directly against wood plates and metal track, in all conditions, even in brightly lit spaces. The highly efficient LA-5P G laser is powered by 3-AA batteries, providing you up to 15 hours of constant run time.
FEATURES:
The self-leveling STABILA LA-5P G Set features 5-bright GREENBEAM laser, pouch, removable framing base, target plate, metal wall mount plate and batteries.
Quickly transfer layout points and set right angles, even in brightly lit conditions.
The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal.
5 green bright and tight dots are visible up to 60ft.
Up dot accuracy tolerance: Will not exceed 3/16 in @ 50ft.
Down dot accuracy tolerance: Will not exceed 1/4 @ 50ft.
Level dot accuracy tolerance: Will not exceed 3/16in @ 50ft.
Square dot accuracy tolerance: Will not exceed 1/8in @ 50ft.
Warranty: Up to 2 years from the date of purchase.
Mechanical off/on switch with pendulum lock.
Self-leveling range: 4.5 degrees.
Up to 15 hours of constant run time on 3-AA batteries.
SPECIFICATIONS:
Laser class: 2
Output: < 1 mW
Laser wavelength: 510 - 530 nm
Self-levelling range: +/- 4.50
Levelling accuracy: +/- 3/16 in @ 30 ft
Laser beam accuracy (up): +/- 3/16 in @ 30 ft
Laser beam accuracy (down): +/- 1/8 in @ 30 ft
Measuring range of visible point: 60 ft
Operating life: 7 h
Protection classIP 54
Tripod connection1/4"-20
2 Year limited warranty
Click here for a video showcasing this product's applications.
