LASER/OPTICAL TOOLS & ACCESSORIES

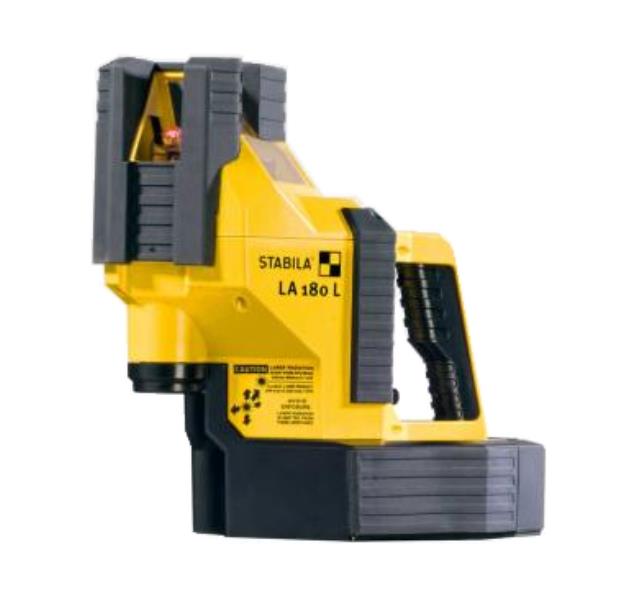

LA 180L Layout Station with Auto Alignment


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: STABILA

Model: LA 180 L

Sale Price: $2,336.00

Quantity:

Info

LA 180L Layout Station with Auto Alignment
Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.
INCLUDES:
LA 180 L multi-line laser
REC 410 Line RF receiver with holder
laser goggles
2 target plates
hard protective case
4 x D 1.5 V batteries
3 x AA 1.5 V batteries
FEATURES:
Self-levelling multi-line laser for precision layout.
AUTO ALIGNMENT function: Receiver automatically controls the positioning of the laser at distances of up to 150ft fully automatic axis transfer and creation of right angles on floors, walls and ceilings, all at the same time. Precise alignment without losing the reference point.
Pulsed laser lines for precise measurements with the receiver (up to 300ft) indoors and outdoors.
Versatile: 3 vertical lines, 1 horizontal line and plumb-line function.
Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line visible range up to 100ft indoors.
Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) rapid checking of right angles.
5/8-11 tripod mount.
Includes: Laser, receiver with bracket, laser enhancement glasses, magnetic red target cards/plates, batteries, hard shell case.
SPECIFICATIONS:
Laser class: 2
Output< 1 mW
Laser wavelength: 635 nm
Self-levelling range: +/- 5
Levelling accuracy: +/- 3/32 in @ 100 ft
Line straightness: +/- 1/8 in @ 100 ft
Laser beam accuracy (down): +/- 3/32 in @ 100 ft
Measuring range of set receiver: 328 ft
Measuring range of visible point: 65 ft
Measuring range of visible line: 65 ft
Battery life: 20 h
Protection class: IP 54
Tripod connection: 5/8"-11
2 Year limited warranty
Click here for a video showcasing this product's applications.

* Prices are subject to change. Contact us for custom job quotes. Applicable Tax and Damage Waiver fees may apply. For sales items, final pricing and availability will be provided once we receive your request.
