LASER/OPTICAL TOOLS & ACCESSORIES

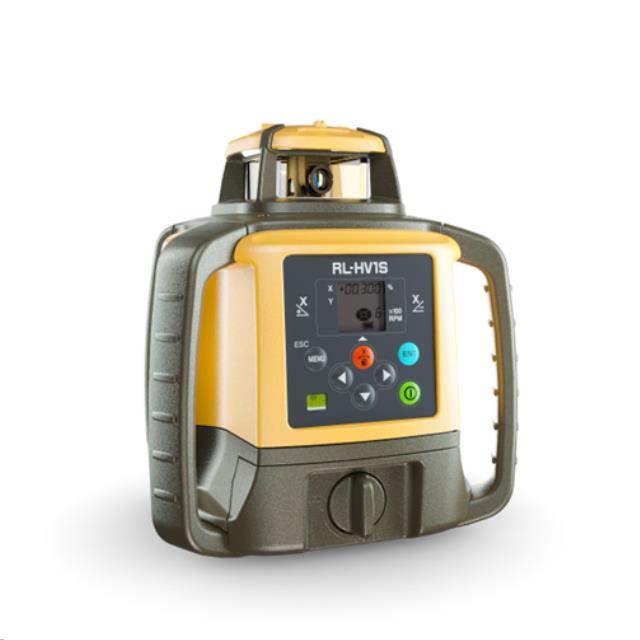

Dual-Slope Rotary Laser w/ Detector and Bluetooth Remote Capability


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: TOPCON

Model: RL-HV1SDB/LS-80X

Sale Price: $1,699.00

Quantity:

Info

The RL-HV series is built for multitasking jobs where you need a laser for horizontal, vertical, single, or dual slope applications. This laser is easy to use and will meet all your job site rotating laser needs.
Features:
Horizontal, vertical, single, and dual slope applications
Long-range operation (800 m)
Tough IP66 construction rating
Extra-long battery life (up to 120 hours)
Laser class 1
Laser Manager Mobile App
Laser Manager, the new mobile app, significantly simplifies operation and puts many of the most common laser functions directly on the user s own mobile device, such as:
Setting up position and slope
Setting up rotation speed and different working modes
Self inspection mode will guide you easily through the calibration process
This new functionality increases the speed pf setting up the laser and allow you to adjust the laser beam in all axes. The Laser Manager App is available free of charge in Google Play store as well in Apple App store.
Single-slope applications:
Designed for a variety of tasks, it can be used for single-slope applications.
Slopes up to 5% ( 15% with tilting plate) can be used in the X axis.
High powered:
With an operating range of over 800 m (diameter), the RL-HV1S has the power
to cover even the biggest projects. (Laser class 1)
Long battery life:
Contractors who want a laser with a long battery life will love the RL-HV1S.
With an operating time of 120 hours on alkaline batteries or 65 hours with the
rechargeable Ni-MH battery pack, this laser will still be working long after others
have quit.
All-weather dependability:
With the IP66 rating, the RL-HV1S is job site tough and can withstand dust,
a sudden shower, and even torrential rainfall.

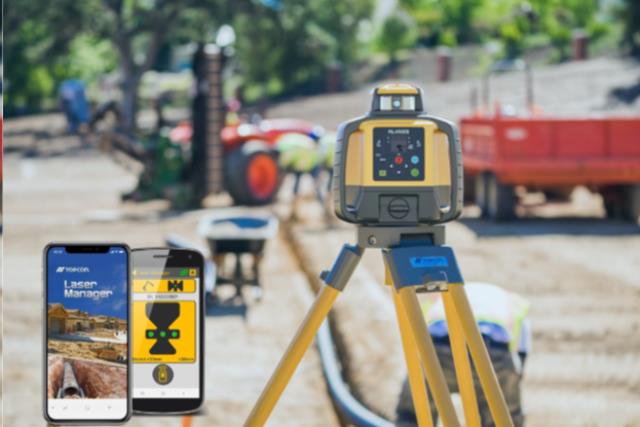

Bluetooth Laser Manager (App download):
Compatibility for iOS and Android provides wireless remote control using a cell
phone to adjust slope and check calibration. No special remote control needed.
KEY COMPONENTS:
RL-HV1S laser
Laser manager app
Works with LS-100 and LS-80 series laser receiver
Bluetooth
Sensor holder
Batteries and charger
Carry case
FEATURES:
Long-range operation - 800m (diameter)
Single-slope laser
Laser manager app (iOS and Android)
Tough IP66 environmental rating
Extra-long battery life (up to 120 hours)
SPECIFICATIONS:
Accuracy H: 10 arc seconds
Self-Leveling Range: Horizontal 5
Grade: Single, 5%
Working Area: 800 m (diameter)
Rotation Speed: 300, 600 rpm
Dust/Water Protection: IP66
Operating Temperature: -20 C to 50 C
Battery Operating Time: 120 hours
5 Year limited warranty

* Prices are subject to change. Contact us for custom job quotes. Applicable Tax and Damage Waiver fees may apply. For sales items, final pricing and availability will be provided once we receive your request.
