LASER/OPTICAL TOOLS & ACCESSORIES

DIGITAL LAYOUT TOOL, LN-150 KIT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: TOPCON

Model: 1039783-01

Sale Price: $15,900.00

Quantity:

Info

LN-150
World s first 3D positioning system designed for construction layout
Applications:
Building interiors
Mechanical, electrical, plumbing
Foundations and footings
Utilities and general layout
Construction layout
The first time you see it, you know it s unlike anything you ve experienced before. Everything about the LN-150, from the advanced technology inside, to its clean and
innovative design, is a game changer for layout. With Topcon time-proven and robotic total station technologies, the instrument offers a totally new tool that s easy to use,
without sacrificing the accuracy and versatility needed for all types of construction layout. With the press of just one button, the LN-150 automatically

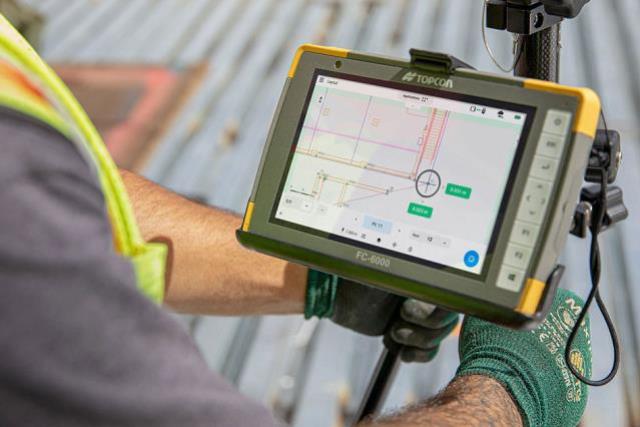

self-levels and is ready for action. Pair it with a hand-held, touchschreen controller and you are ready to go to work. With a ruggedized field controller, call up a simple point
layout or large CAD drawings right in the palm of your hand, anywhere on the job site. Display the design point or line that needs to be staked out, then touch it and the

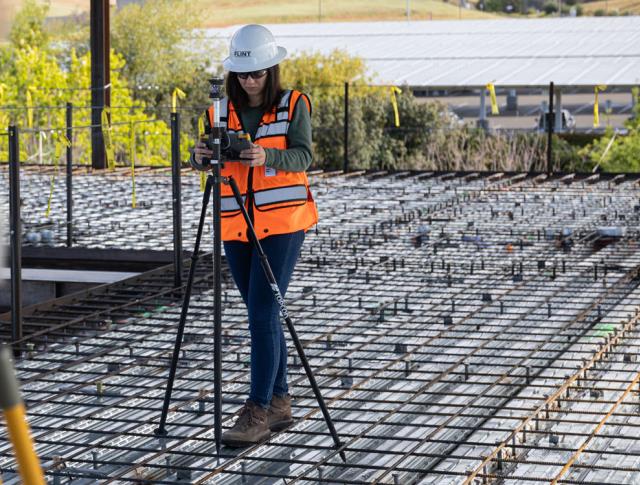

LN-150 immediately points to the exact location. It can also lock onto a prism and guide you to the next design points. One-person layout has never been this easy.
From traditional utility layout, to foundations, electrical, plumbing, walls, ceilings, HVAC, and much more layout anything on the job site up to 130 m from the LN-150. Never
before has construction layout been so powerfully simple.
3D layout tool:
The LN-150 is a compact, self-leveling, easy-to-setup 3D
layout tool designed for construction applications. Use the
LN-150 in place of traditional methods such as tapes or
other layout tools. Compact, rugged and lightweight, the
LN-150 is ideal for construction layout and as-builts.
Building Information Modeling (BIM):
Maintain coordination throughout your projects. Knowing
what was done before and working from the same design
plan is critical to keep on schedule and avoid costly
collisions. With Topcon BIM solutions, you stay connected
to the same design.
Features:
Interference-free communications
Easy-grip carrying handle
High-visibility guide lights
Completely sealed waterproof and dustproof housing
LED indicators and bright laser plummet
Easy, one-button setup
Self-leveling base
Rugged compact design
Small and lightweight
Waterproof dustproof design
Easy to carry
Completely sealed housing
Easy setup and operation
On the ground or decking
Mounts on tripod or column clamp
Automatic self-leveling
Alerts user if disturbed
Advanced 3D measuring and layout
Built-in wireless or Bluetooth communication connectivity
130 m working range
Automatically turns to layout points
Tracks a standard prism
Easy to perform as-built checks
Fast and accurate
Reliable quality control
Identify changes from original plans
Ensure accurate record keeping
Key Components:
LN-150 3D Layout Navigator
New BDC72 batteries and CDC77 battery charger offer improved working duration
Carrying case
TSshield for theft deterrence and location tracking
MAGNET Construct optional
Kit Includes:
SUBS, Topcon Digital Layout 12mo
SUBS, Point Manager 12mo
RAM CLIP Mount Kit
TP-15 Wood Fiberglass QC Tripod
128 GB Geo Cell, N. America
LN-150/PSBW, W/BT+WLAN, US
Carbon Fiber Bipod Prism Pole
Prism Pole Top Aluminum Knob Lock
ATP2 360 Degree Round Prism
Carbon Fiber Robotic Pole
Tripod Stabilizer

* Prices are subject to change. Contact us for custom job quotes. Applicable Tax and Damage Waiver fees may apply. For sales items, final pricing and availability will be provided once we receive your request.
