ADA TILE, YELLOW,REPLC, 2X3


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: ADA SOLUTIONS

Sale Price: $88.50

Quantity:

Info

Regular Price: $123.00

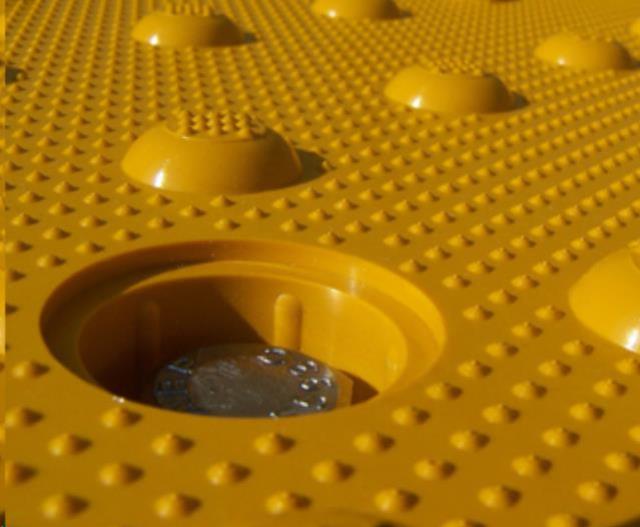

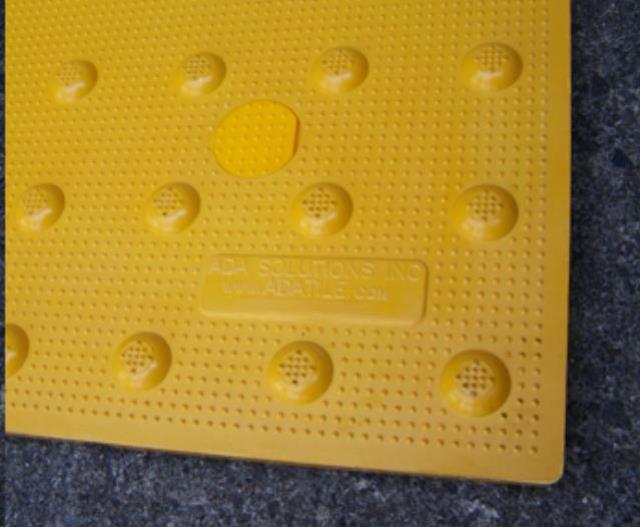

Yellow Cast-in-Place Replaceable Tactile Panels, 2' x 3'
FEATURES:
Body Thickness is 0.25 not including truncated domes (10% greater than the closest alternative).
Panel Weight is 2.25 lbs. per SF (12% more material than the closest alternative).
Four-Sided Embedment Flange is 0.75 deep and 1.02 thick.
Utilizes time tested and proven 0.5 x 1.5 Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
Inserts are housed in a 0.5 recessed fixture on the back side of the panel.
This insures 2 of embedment depth into the concrete (50% deeper than the closest alternative).
The Replaceable unit is secured into the anchor with a 0.5 x 1.5 heavy duty metal bolt located 0.25 into the body of the panel.
The bolt head is fully covered and protected by structurally fit caps. This is a far superior to the open faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.
SPECIFICATIONS:
Color: Yellow
Size: 2' x 3'
